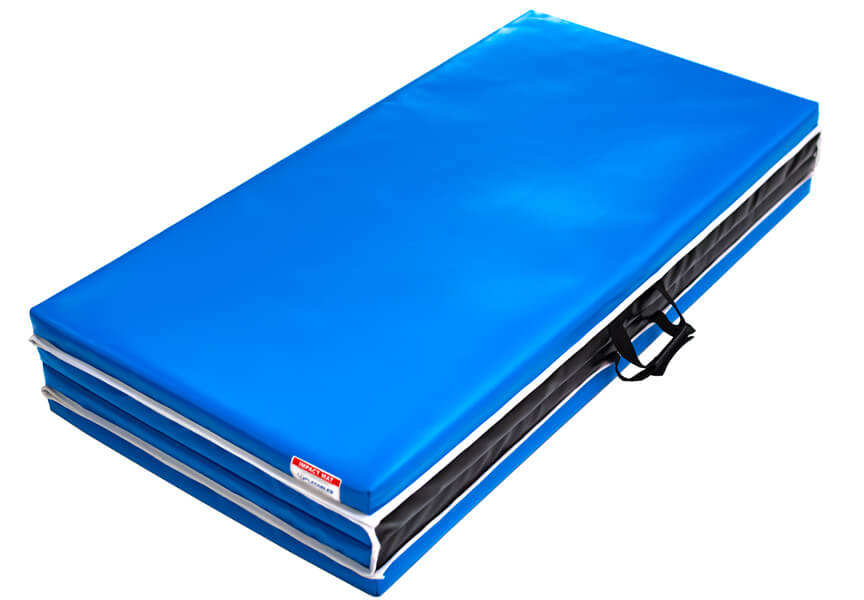

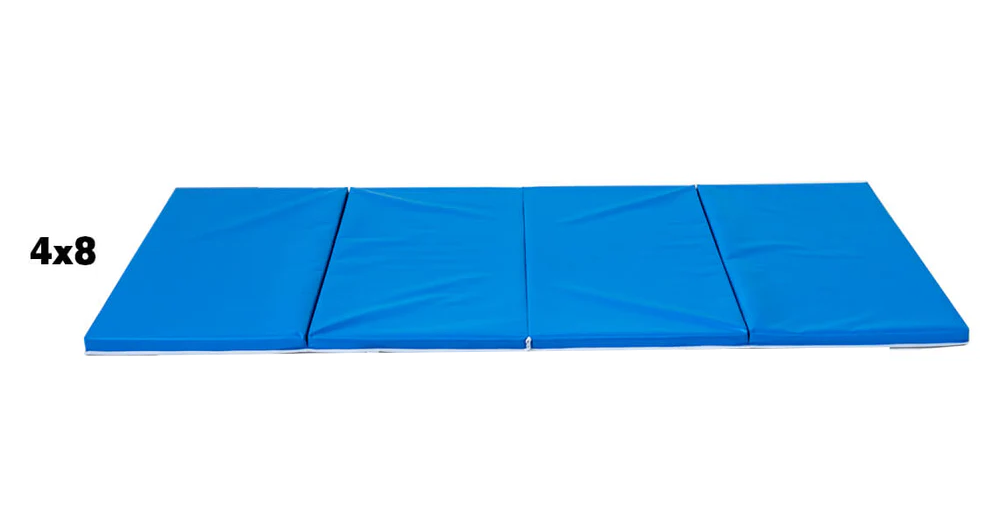

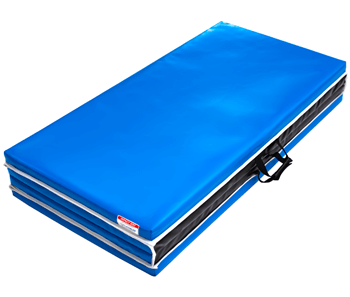

Our impact mats are a perfect way to make your inflatables safer, and comply with new 2018 ASTM Regulations for impact attenuation.
Made of durable material, they have a built-in handle system to make carrying and storage easy.
Plus, if you have a 2017 or newer inflatable with our new safety ramps, you can connect the mats with integrated built-in clips to hold the mats in place.
Not all impact mats are created equal.
You're likely to be bombarded sooner or later with advertisements for impact mats. However, not all mats on the market are compliant with the new ASTM requirement. Make sure the mats you purchase have undergone proper testing and have the documentation to back it up.
Make sure you only purchase and use impact mats that have been tested compliant with ASTM F355 testing.
New ASTM Requirements:
The American Society for Testing and Materials [ASTM] regulates many industries design, manufacturing and operations standards for safety.
This organization working in cooperation with the United States Consumer Products Safety Commission [USCPSC] have developed requirements for the safe use of Inflatable Devices.
Newly revised ASTM standards contain language for the required use of Impact Attenuation Mats around all entrance and exist areas of inflatable devices.
In addition these these 2 locations, any wall or open area less than 36” high must also use an approved Impact mat.
NEW 2018 ASTM F-24 Standards on Amusement Rides & Devices
ASTM F2374-10 ACTIVITY-RELATED CONTAINMENT:
If an inflatable game or other device has a play area where the patron is elevated on an object above the mattress surface, the designer shall evaluate the need for higher containment walls, an impact attenuation system, or other mitigation strategy for potential fall hazards.
Ingress/Egress and Device Landing Surfaces
The landing surfaces are the areas beneath and directly adjacent to the ingress and egress areas of the inflatable amusement device and any uncontained perimeter area, where a user would land when exiting or falling from the device.
(a) The maximum free height of fall in designated ingress and egress areas shall be no more than 30” (.76m) in the unloaded condition.
(b) In the ingress/egress areas and any other uncontained perimeter areas, surfacing shall conform to impact attenuation requirements in section 5.16.6, and shall extend at least 4 feet (1.2 m) from any uncontained edge of the inflatable device.
We have received certification for the Impact Mats we carry from an accredited Sports Lab testing facility based on the testing requirements established by these new ASTM standards.
ASTM requirements for testing and certification of these Impact Mats requires labeling to be clearly marked for Inspectors to verify compliance.
MAKE SURE YOU ONLY PURCHASE AND USE IMPACT MATS THAT HAVE BEEN TESTED COMPLIANT WITH ASTM F355 TESTING.
Need to customize your inflatable?
Do you need to be under a certain height? Are you looking for custom artwork branding? We have a full U.S. factory and can modify product dimensions, colors, and artwork to better suit your needs. Give us a call to discuss needs and pricing.
Toll-Free: (800) 811-7002 / Local: (651) 209-8600
sales@cuttingedgecreations.com
Specifications
SKU: 4MAT4X8
WEIGHT: 15.0 lb
Height:
Width:
Length
Upper Deck Height:
Max Patrons:
Patron Height: -
Max Weight per Patron:
Blowers Required (not included):
Recommended Age Group:
Features:
Want to customize your inflatable?
Do your inflatables need to be a specific height? Need certain coloring or artwork?
Cutting Edge Creations has the ability to modify and customize your inflatable product to any specific height, color, and or artwork. We will work to create an inflatable to suit your needs and ideas — call us for a quote.
